Specifications

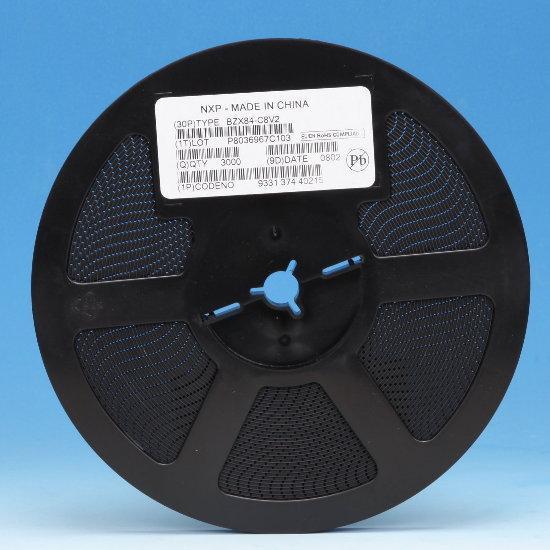

• Working Voltage: 8.2V• Forward Voltage(VF)(Max): 0.9V(IF = 10mA) • Forward Current(IF)(Max): 200mA• Zener Voltage Tolerance: ±5%• Zener Voltage(VZ)(Min): 7.7V• Zener Voltage(VZ)(Max): 8.7V• Reverse Current(IR)(Max): 700nA(VR = 5V)• Total Power Dissipation(Ptot)(Max): 250mW• Non-Repetitive Peak Reverse Power Dissipation(PZSM)(Max): 40W • Diode Capacitance(Cd)(Max): 150pF(VR = 0V , f = 1.0MHz)• Non-Repetitive Peak Reverse Current(IZSM)(Max): 4A• Storage Temperature Range(Tstg): -65°C to +150°C• Operating Junction Temperature(TJ): -65°C to +150°C• Brand Name: NXP Semiconductors• BZX84 Series• Mounting Type: SMD(Surface-Mounted Device)• Package Type: SOT-23(TO-236AB)• Lead Count: 3• Part Number: BZX84-C8V2,215(3,000 units / reel) , BZX84-C8V2,235(10,000 units / reel) • SMD Zener Diodes Mass Stock• We supply various electronic components and welcome your inquiries

Features

• Lead-Free Type • RoHS Compliant • Total power dissipation: max. 250 mW• Three tolerance series: ±1%, ±2% and approx. ±5%• Working voltage range: nom. 2.4 to 75 V (E24 range)• Non-repetitive peak reverse power dissipation: max. 40 W
