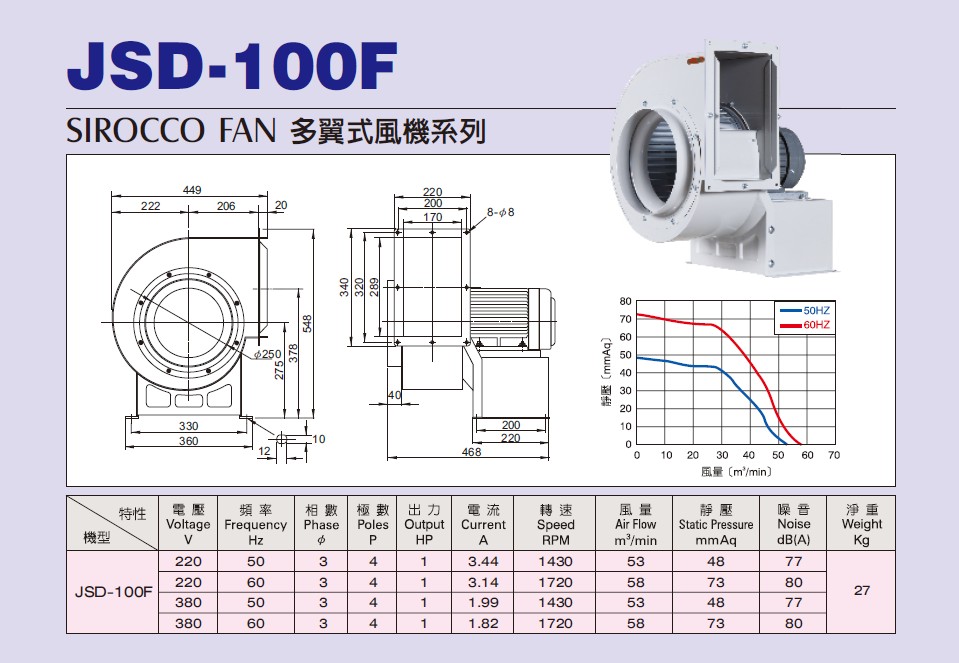

JSD-100F

Product ID: JSD-100F

Send Inquiry



Model Voltage Frequency Phase Poles Output Current Speed Air Flow Static Pressure Noise Weight
V Hz ψ P HP A RPM m³/min  mm/Aq dB(A)  Kg
JSD-100F 220 50 3 4 1 3.90 1415 53 48  77 27
220 60 3 4 1 3.10 1705 58 73  80 27
380 50 3 4 1 2.25 1415 53 48  77 27
380 60 3 4 1 1.79 1705 58 73  80 27



Minimum Order: Negotiable TEL: 886-2-2268-3215 / 2268-3217 FAX: 886-2-2268-3219
