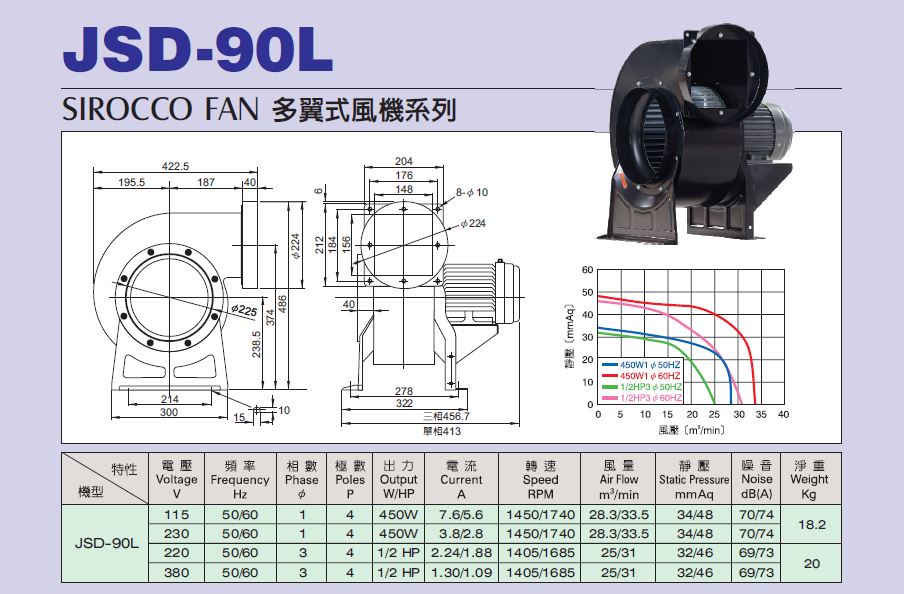

JSD-90L

Product ID: JSD-90L

Send Inquiry



Model Voltage Frequency Phase Poles Output Current Speed Air Flow Static Pressure Noise Weight
V Hz ψ P  W A RPM m³/min  mm/Aq dB(A)  Kg
JSD-90L 115 50/60 1 4 450W 7.6/5.6 1450/1740  28.3/33.5 34/48 70/74 18.2
230 50/60 1 4 450W 3.8/2.8 1450/1740 28.3/33.5 34/48 70/74 18.2
220 50/60 3 4 1/2 HP 2.24/1.88 1405/1685 25/31 32/46 69/73 20
380 50/60 3 4 1/2 HP 1.30/1.09 1405/1685 25/31 32/46 69/73 20



Minimum Order: Negotiable TEL: 886-2-2268-3215 / 2268-3217 FAX: 886-2-2268-3219
