JSD-80F

Product ID: JSD-80F

Send Inquiry

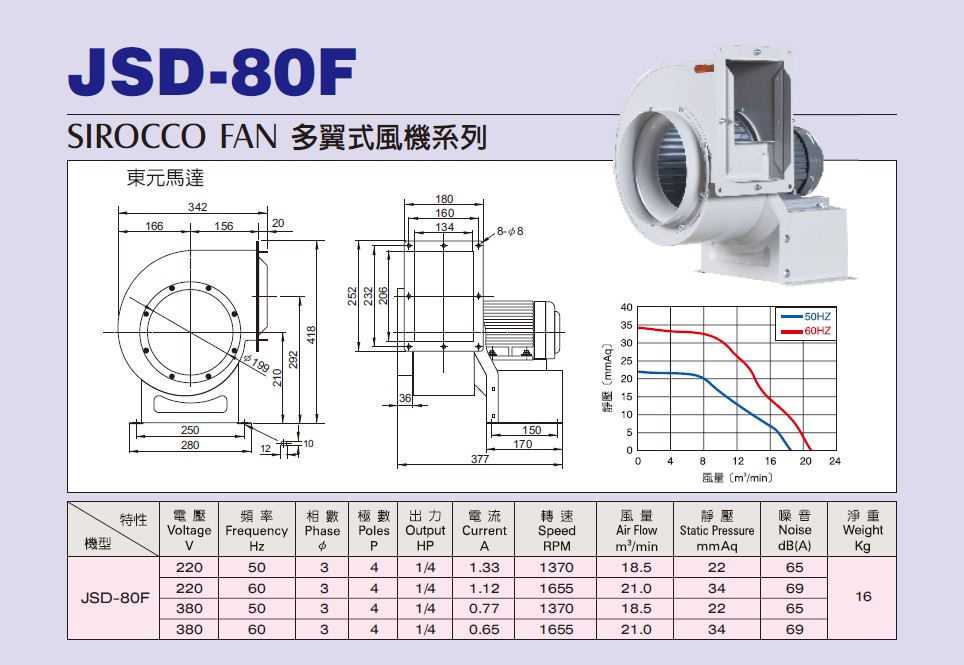

Model Voltage Frequency Phase Poles Output Current Speed Air Flow Static Pressure Noise Weight
V Hz ψ P HP A RPM m³/min  mm/Aq dB(A)  Kg
JSD-80F 220 50 3 4 1/4 1.33  1375  18.5 22  65 16
220 60 3 4 1/4 1.12 1655 21.0 34  69 16
380 50 3 4 1/4 0.77 1375 18.5 22  65  16
380 60 3 4 1/4 0.65 1655 21.0 34  69  16



Minimum Order: Negotiable TEL: 886-2-2268-3215 / 2268-3217 FAX: 886-2-2268-321
