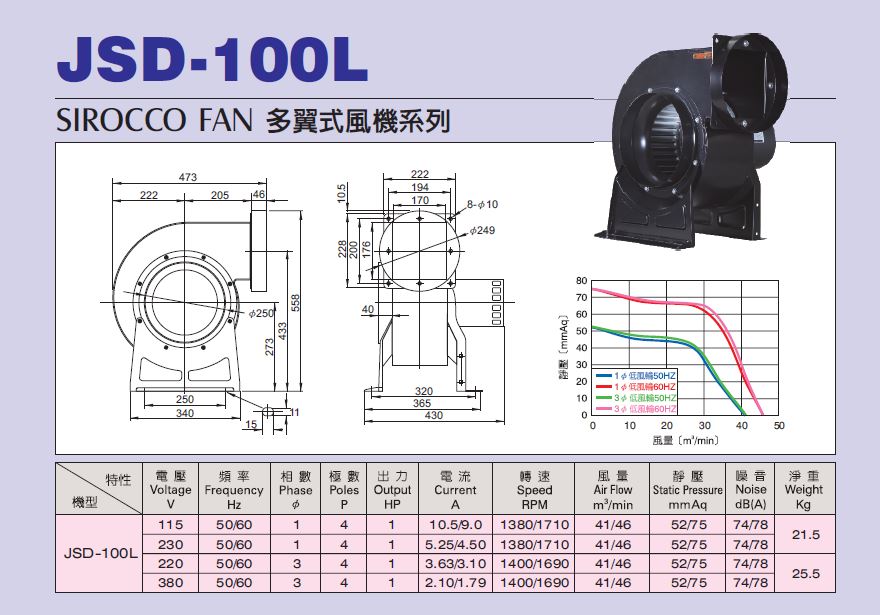

JSD-100L

Product ID: JSD-100L

Send Inquiry
Model Voltage Frequency Phase Poles Output Current Speed Air Flow Static Pressure Noise Weight
V Hz ψ P HP A RPM m³/min  mm/Aq dB(A)  Kg
JSD-100L 115 50/60 1 4 1 10.5/9.0 1380/1710  41/46 52/75 74/78 21.5
230 50/60 1 4 1 5.25/4.50 1380/1710 41/46 52/75 74/78 21.5
220 50/60 3 4 1 3.90/3.10 1415/1705 44/50 53/76 74/78 25.5
380 50/60 3 4 1 2.25/1.79 1415/1705 44/50 53/76 74/78 25.5



Minimum Order: Negotiable TEL: 886-2-2268-3215 / 2268-3217 FAX: 886-2-2268-3219
